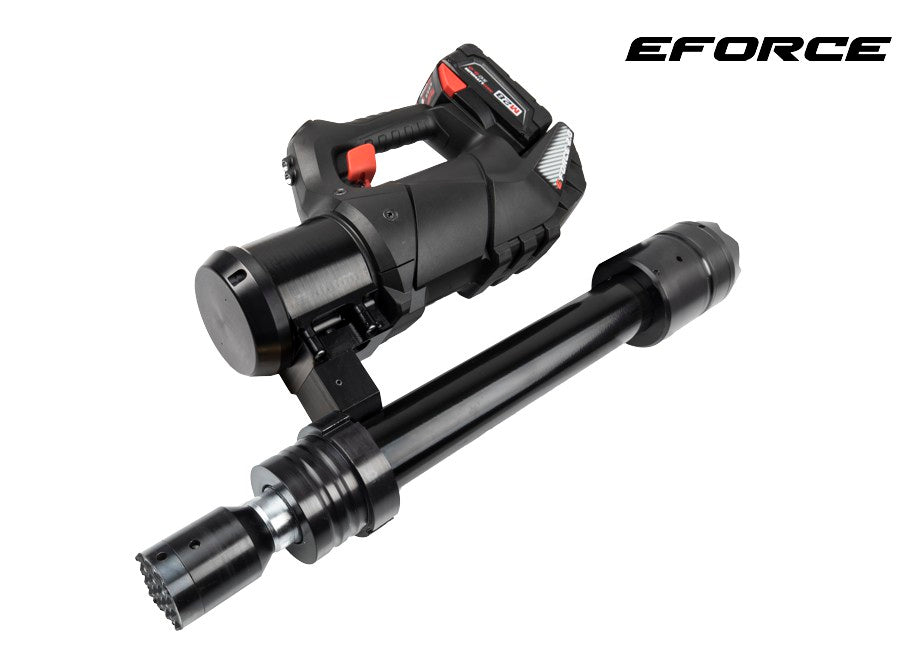

Genesis 41 in. Push-Pull Ram

Contact the e-Fire Sales Team for Pricing!

The Genesis 41 in. Push-Pull Ram accepts all the attachments the Genesis Slip-fit kit allows users to perform both pushing evolutions and pulling evolutions. Paired with the Angle V-Head this ram gets the bite you need in dash-related extrication evolutions.

Specifications:

• Length: 25.7" / 653 mm
• Width: 5.6" / 142 mm
• Depth: 15" / 380 mm
• Weight: 47.6 lbs / 21.6 kgs
• Weight without Battery: 45.4 lbs / 20.6 kgs
• Ingress Protection Rating: IP54
• Nominal Voltage: 28V
• Current Consumption: 10-42A
• Battery: 28V DC / 3.0 OR 5.0 ah
• Nominal Pressure: 10,000 psi /70 MPa
• Length Open: 41.8" / 1061 mm
• Length Retracted: 25.7" / 653 mm
• Stroke: 16.1" / 408 mm
• NFPA 1936 Compliant: Yes
• NFPA 1936 HSF: 31,050 lbf / 138 kN
• NFPA 1936 HPF: 10,350 lbf / 46 kN

For extended use, add a second Milwaukee Battery, found here.
