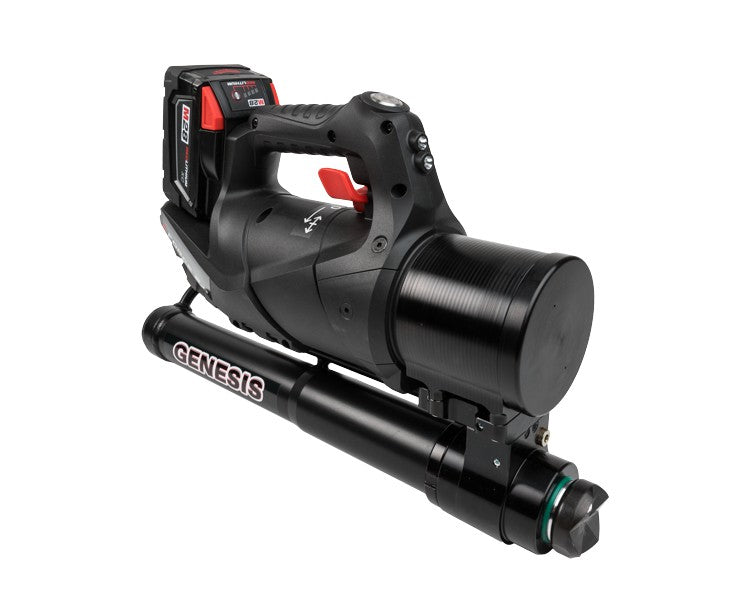

22-54 Telescopic Eforce 2.0 Telescopic Ram

$0.00
SKU 200077673

Contact the e-Fire Sales Team for Pricing!

The 22-54 Telescopic Eforce 2.0 Ram is a two-staged telescopic ram. The next generation of untethered extrication. Genesis started the redesign with the drive unit, adding a brushless motor that makes more power. Encased it with newly designed state-of-the-art housing equipped with impact-resistant polymer. This allowed them to squeeze more run time out of the M28 battery, (extras found here), by nearly double.

Upgrading the heart of the drive unit allowed them a higher operating speed. eForce is driven by a brushless motor with neodymium magnets and a rotating case that is manufactured using the latest technology from the finest quality materials. The hardened steel 5/16 inch shaft is supported by three ball bearings, and the overall robust construction ensures a long service life.

Specifications:

  • 22-54 Telescopic Eforce 2.0 Telescopic Ram
  • Length Closed:   23.1" / 586 mm
  • Width:  5.3" / 134 mm
  • Height:  13.7 / 349 mm
  • Weight:  44.3 lbs. / 20.1 kg
  • Stroke Stage 1:  16.9" / 428 mm
  • Stroke Stage 2:  14.6" / 372 mm
  • Length Extended:  54.6" / 1386 mm
  • Ingress Protection Rating: IP54
  • Force Stage 1:  24,300 lbf / 108 kN
  • Force Stage 2:  13,950 lbf / 62 kN
  • Nominal Pressure:  550 bar / 7,975 psi

Note:  Shipping and Handling Fees
Please be aware that this product ships via freight truck, so shipping and handling fees are estimated only. For an exact shipping charge, please contact the e-Fire Sales Team we'll provide you with a quote.
