2 in. NPT Gateable Valve and Control Interface Kit

Sale Sale
Original price $3,400.55
Original price $3,400.55 - Original price $3,400.55
Original price $3,400.55
Current price $2,957.00
$2,957.00 - $2,957.00
Current price $2,957.00
SKU 200058957

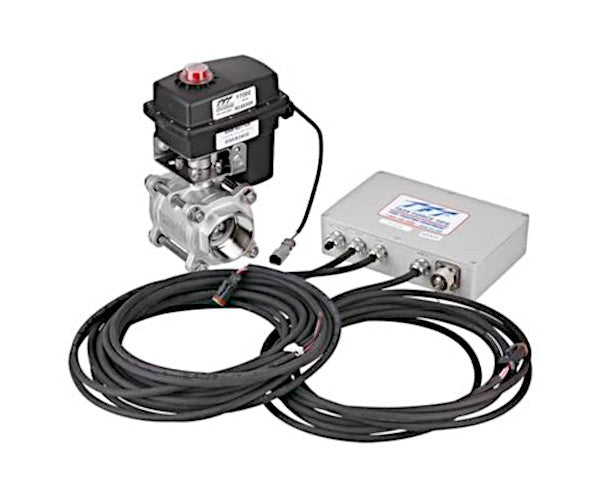

The 2" NPT Gateable Valve and Control Interface Kit (YE-VKG-PH) is an electric gateable valve kit for EF1 and Tornado series remote control monitors. The valve package includes a stainless steel valve with a controller mounted on a valve, and an interface box for connection of joystick control, monitor, and power. The valve kit electrical components shall be compatible with 12 or 24-volt direct current.

The enclosure is weatherproof and utilizes weatherproof components such as a silicone seal, hardware with o-rings, and liquid-tight electrical connections with strain relief fittings.

The enclosure includes the following:

  • A preconnected 20-foot, four-conductor cable with a waterproof, four-pin connection plug for power and communications connection to the monitor
  • A preconnected 20-foot, six-conductor cable with a waterproof, six-pin connection plug for connection to the valve controller
  • A preconnected 15-foot, two-conductor cable with stripped ends for connection to vehicle power
  • A four-pin receptacle with a cap for connection to a joystick control
    • Joystick Controls are available here and here.
  • An unused strain relief fitting for an additional operator station cable

The valve has a 2" NPT female inlet and outlet, stainless steel ball and housing, valve position indicator, and six-conductor cable with waterproof plug for connection to enclosure valve control cable.

This valve kit includes a heavy-duty 2” NPT water valve and an interface box for simplified 12/24 volt wire connections to the monitor control system. The valve is a 2” NPT full port stainless steel ball valve with integral electric actuator control with valve opening position sensing and cable with pre-wired plug.

The valve kit is covered by a five-year written warranty from Task Force Tips.
