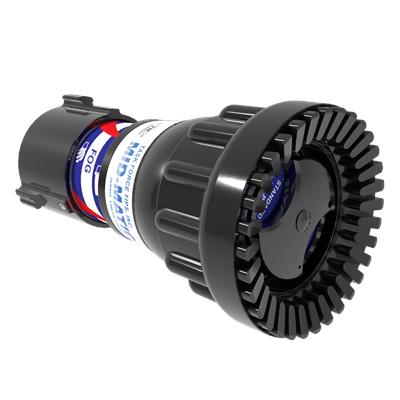

1-1/2 in. Mid-Force Nozzle

Sale Sale
Original price $1,530.65
Original price $1,530.65 - Original price $2,312.65
Original price $1,530.65
Current price $1,331.00
$1,331.00 - $2,011.00
Current price $1,331.00
SKU 200081026
Variants with Part Numbers

55/100 PSI / No / Standard: HMD-TO

55/100 PSI / No / Spinning: HMD-TOS

45/75 PSI / No / Standard: HMDL-TO

55/100 PSI / Yes / Standard: HMD-V

45/75 PSI / Yes / Standard: HMDL-V

55/100 PSI / Yes / Spinning: HMD-VS

The dual pressure produced by the 1-1/2 in. MID-FORCE Automatic Nozzle has a wide flow range of 70-200 gpm (265-760 l/min) that gives superior performance in both handheld and monitor nozzle configurations.

Handheld:  For use with a 1.5" (38mm), 1.75" (45mm), or 2" (52mm) hose. The baffle of the nozzle is equipped with a low-pressure override knob, which allows the nozzle to achieve even greater flows at lower nozzle pressures. All nozzles are regulated to 100 psi ±15 psi (7 bar ±1 bar) or 75 psi ±15 psi (5 bar ±1 bar) according to NFPA 1964 flow requirements. It is adjustable from a straight stream to a dense fog pattern with your choice of molded rubber fog teeth for a fully-filled “power fog” pattern or stainless steel spinning teeth.

Standard Mode: In the standard mode, the MID-FORCE Nozzle maintains a 100 psi (7 bar) operating nozzle pressure (75 psi / 5 bar for the low-pressure version). This gives you the desired ability to aggressively conduct a hard-hitting fire attack. However, with a twist of the knob on the front of the nozzle, you switch to the low-pressure mode, which immediately reduces the nozzle's operating pressure to around 55 psi (3 bar) (45 psi / 3bar for low-pressure version). This exclusive TFT feature provides you with the unique ability to change the operating nozzle pressure depending on the situation, thereby allowing maximum flow at lower nozzle pressure.

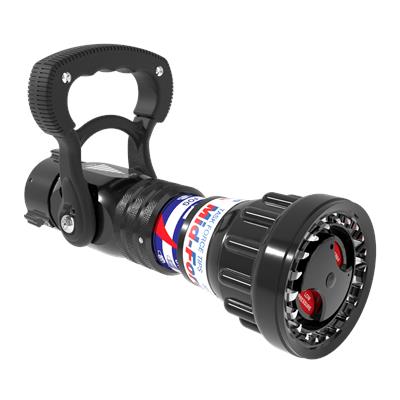

These nozzles are available as a "tip-only," or with a slide valve shutoff. MID-FORCE nozzles are also available with TFT’s IMPULSE™ trigger valve system. Please contact our sales team if you are interested in the Impulse trigger valve system.

These units come with a laser-engraved serial number, reflective labeling, and a five-year warranty from Task Force Tips.
