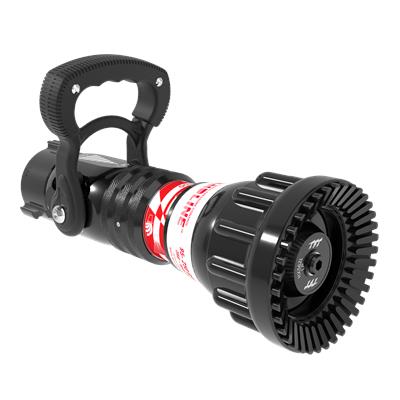

1-1/2 in. Handline Nozzle
The automatic 1-1/2 in. Handline Nozzles include all conventional handline sizes in one. The HANDLINE Series features flush without shutdown, a "Gasket Grabber" inlet screen, a molded rubber bumper with "power fog" teeth, TFT's patented stainless steel slide valve, detent flow control, and optional colored pistol grip and handle covers. They are constructed with all lightweight hard-coat anodized aluminum for maximum resistance to corrosion and wear. 1.5" NH (64mm) rocker lug full-time swivel coupling is standard.

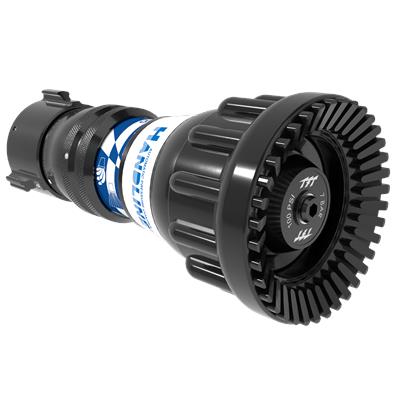

This "tip-only" nozzle is for use with a separate valve or valved playpipe. It features automatic 100 psi (7 bar) pressure control with a flow capacity of 95-300 gpm (360-1150 l/min). It includes flush without shutting down and molded rubber teeth for a full-fill "power fog" pattern. The tip does not shut off and must be used with a separate valve or valved playpipe.
Similar to the H-TO above, this nozzle operates at a low pressure of approximately 75 psi (5 bar). The flow range is 95-250 gpm (360-950 l/min).

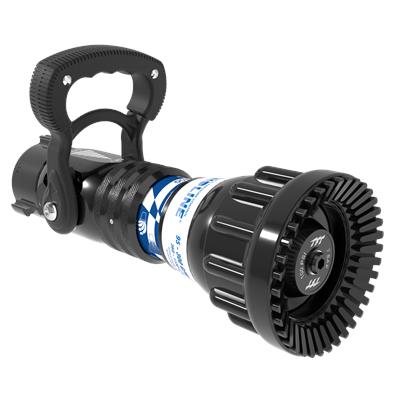

This nozzle offers a stainless slide valve and features automatic pressure at 100 psi (7 bar) pressure control with a flow capacity of 95-300 gpm @ 100 psi (360-1150 l/min).
This nozzle has the same features as the H-V above but operates at a low pressure of approximately 75 psi (5 bar). Flow range 95-250 gpm @ 55 psi (360-950 l/min).
All units are made with laser-engraved serial numbers, reflective labeling, and a five-year warranty from Task Force Tips.
All units are designed to accept the Task Force Tips FJ-H low expansion or the FJ-HMX multi-expansion FoamJet foam attachments. Please contact our sales team if you are interested in this FoamJet attachment series.
