1-1/2 in. F NFPA Stack Tip FS-3Stack
The 1-1/2 in. F NFPA Stack Tip FS-3Stack sets are lightweight tips that have been hard-coat anodized and have pressure/flow charts laser engraved on each tip. Orifice openings are 1-1/4, 1-1/8", and 1" (32mm, 28mm, and 25mm). Use with valved playpipe H-2VPP for compliance with NFPA 1901 equipment requirements. Each tip is threaded 1.5" NH (38mm).

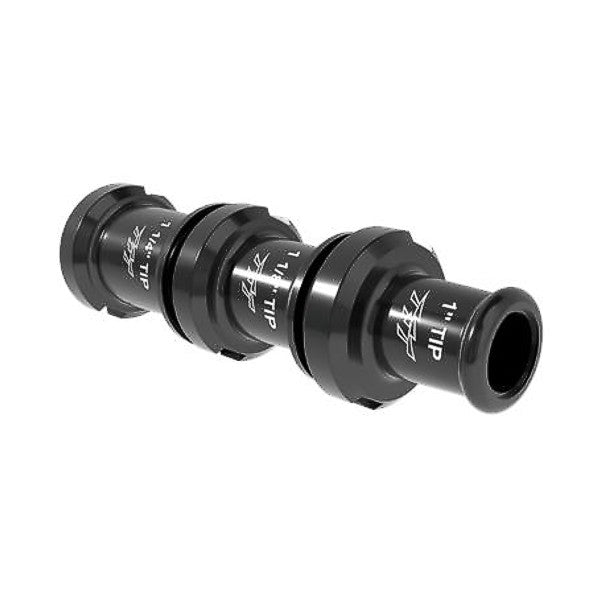

The set includes three (3) hard-coat anodized aluminum tips in the following orifice sizes: 1", 1-1/8", and 1-1/4", all with smooth bore nozzle tips.
Each tip has a laser engraved pressure/flow chart and has 1.5" female NH threads. The 1-1/4” and 1-1/8” tips shall have 1.5" male NH threads so that all three tips can be kept together.
The unit is covered by a five-year warranty from Task Force Tips.
