Transformer Piercing Nozzle and Accessories

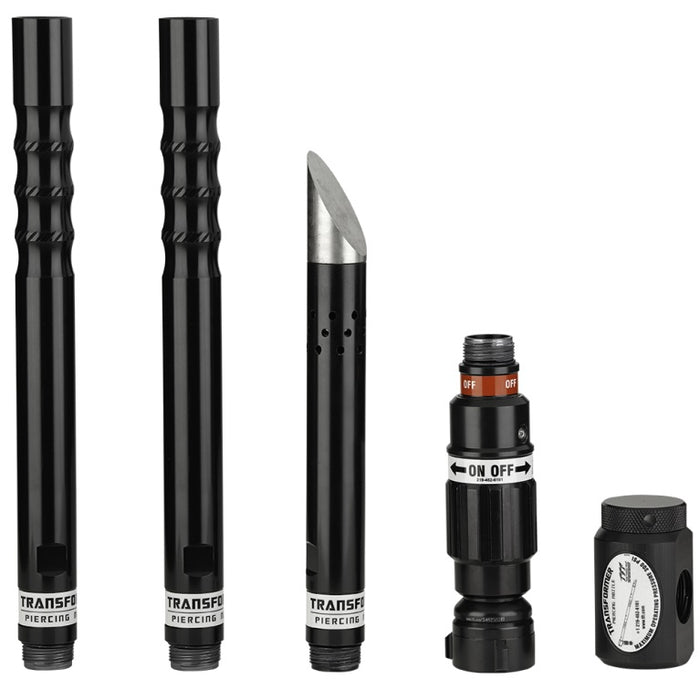

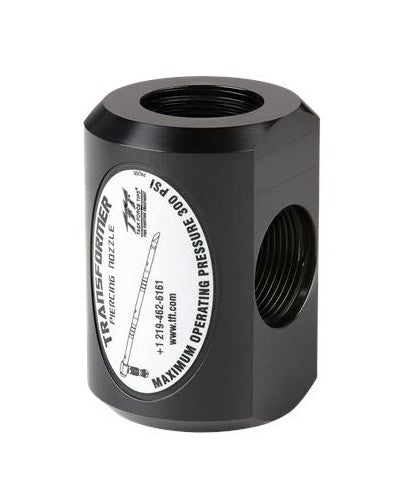

The Task Force Tips Transformer PA1 Piercing Nozzle System (200056125) is designed to deliver water or foam solutions to areas inaccessible to a firefighter. A series of jets near the point apply a wide-reaching pattern at a rated flow of 570 l/min at 7 bar (150 gpm at 100 psi). The PA1 system includes a unique twist-grip shutoff valve, a 3-port junction block with a striking head, 2 extension tubes, and the flow tube with a hardened steel piercing point. The easy-to-use and rugged, twist-grip shutoff valve, regulates nozzle flow without needing an additional shutoff valve. The 3-port junction block and striking head allow the nozzle to be configured to short, medium, long, and L-shaped combinations, making it easily adaptable to specific fireground situations.

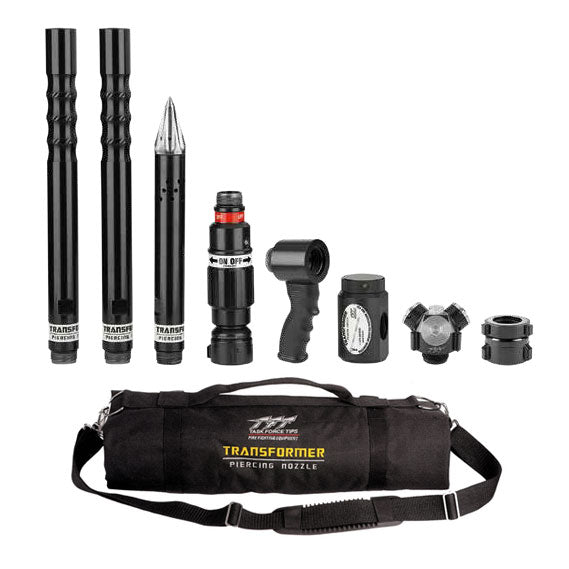

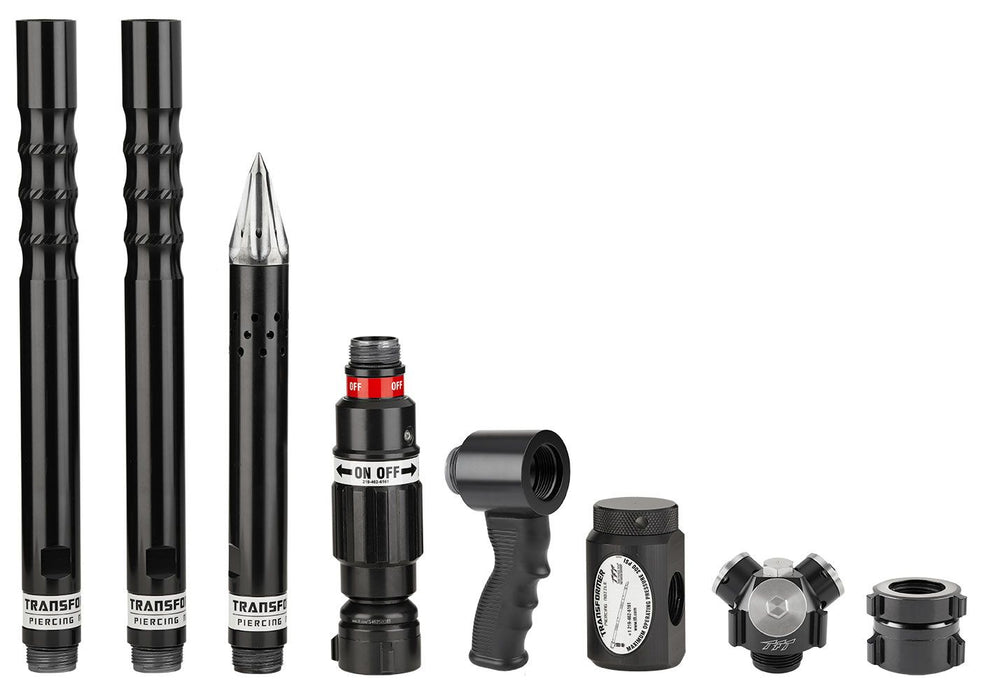

The PA2 Deluxe Piercing Nozzle System (200076600) comes with everything included with the PA1 but also includes a distribution nozzle rated at 570 l/min (150 gpm), that provides a wide fully-filled pattern, and an adapter allowing the distributor nozzle to be used on any 2.5 cm (1.5") NH threaded hose line. Also included are as follows: A unique twist-grip shutoff valve, a 3-port junction block with a striking head, pistol grip, 2 extension tubes, and the flow tube with a hardened steel piercing point. The easy-to-use, rugged, twist-grip shutoff valve regulates nozzle flow without needing an additional shutoff valve.
Both systems come with a sturdy nylon carrying bag with compartments for each component that is included.
Many items are also available to be purchased separately as additions to your system:
- PA11 - 19" Extension Tube (200081007)

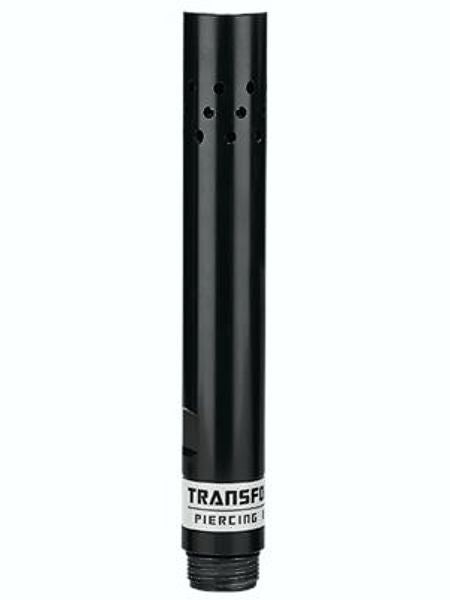

- PA12 - Flow Pattern Extension Section (200081008)

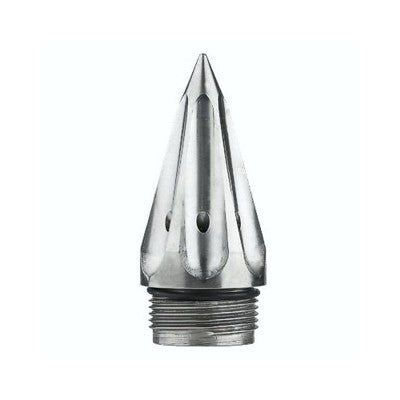

- PA14 - Piercing Point (200081009)
- PA16 - Piercing Nozzle Striking Cap (200081011)
- PA18 - Inlet Remote Kit (200081012)
- PA26 - Distributor Nozzle Kit (200081014)
All units come with a 5-Year Warranty from Task Force Tips.
